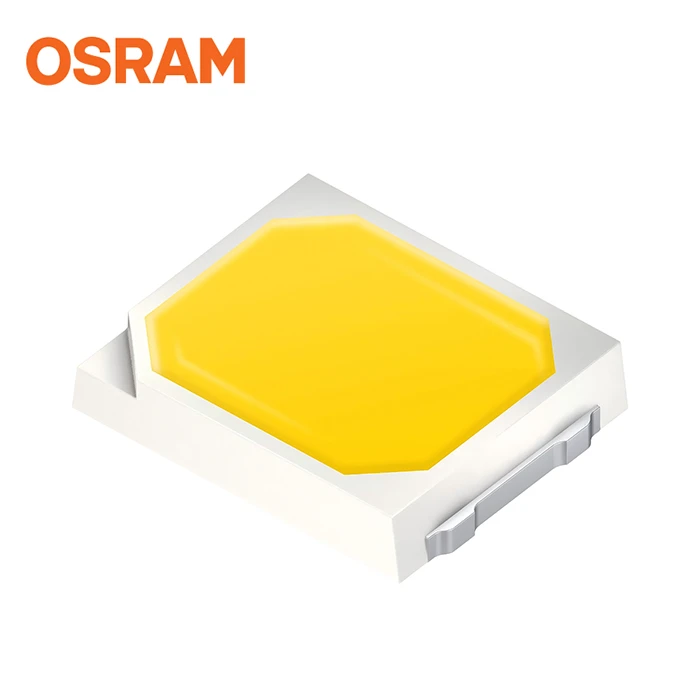

GW JTLPS1.EM
Duris ™ E 2835 státar af samsniðinni stærð (2,8 mm x 3,5 mm) og mikilli ljósvirkni, en einnig býður upp á breitt geislahorn. Þetta skiptir sköpum fyrir að ná einsleitri lýsingu og í þessu sambandi er Duris ™ E 2835 áberandi fyrir betri afkomu sína á kerfisstiginu.
Lýsing
Duris ™ E 2835 GW JTLPS1.EM
Duris ™ E 2835 sameinar góða verkun og breitt geislahorn í samningur snið (2,8 mm x 3,5 mm). Þetta er lykillinn að einsleitum lýsingarforritum þar sem Duris ™ E 2835 tekst aldrei að vekja hrifningu með afköstum sínum á kerfisstigi.
Forrit
- innanhússlýsing
Eiginleikar
- Pakki: Hvítur SMT pakki, litaður dreifður kísill plastefni
- typ. Geislun: 120 gráðu (Lambertian Emitter)
- lit hitastig: 2200k - 6500 k
- CRI: 80 (mín.), 82 (typ.), R9: 0 (mín.)
- ESD: 2 kV Acc. til ANSI/ESDA/JEDEC JS-001 (HBM, flokkur 2)
- Luminous Flux: Typ . 74 lm @ 4000 K
- Ljósvirkni: type . 169 lm/w @ 4000 k
- lýsandi verkun @ 65ma: typ . 190 lm/w @ 4000 K
Duris ™ E 2835 GW JTLPS1.em_ Plus
For - mótað 2835 LED útgáfa með Standard 2835 fótspor veitir samkeppnishæf gildi í forriti og kerfisstigi. Duris ™ E 2835 sameinar góða verkun og breitt geislahorn í samningur snið (2,8 mm x 3,5 mm). Þetta er lykillinn að einsleitum lýsingarforritum þar sem Duris ™ E 2835 tekst aldrei að vekja hrifningu með afköstum sínum á kerfisstigi.
Forrit
- innanhússlýsing
Eiginleikar
- Pakki: Hvítur SMT pakki, litaður dreifður kísill plastefni
- typ. Geislun: 120 gráðu (Lambertian Emitter)
- lit hitastig: 2200k - 6500 k
- CRI: 80 (mín.), 82 (typ.), R9: 0 (mín.)
- ESD: 2 kV Acc. til ANSI/ESDA/JEDEC JS-001 (HBM, flokkur 2)
- Luminous Flux: Typ . 78 lm @ 4000 K
- Ljósvirkni: type . 178 lm/w @ 4000 k
- lýsandi verkun @ 65ma: typ . 200 lm/w @ 4000 K
Duris ® E 2835 GW JTLPS1.em_ Gen 2
For - mótað 2835 LED útgáfa með Standard 2835 fótspor veitir samkeppnishæf gildi í forriti og kerfisstigi. Duris ® E 2835 sameinar mikla verkun og breitt geislahorn í samningur snið (2,8 mm x 3,5 mm). Þetta er lykillinn að einsleitum lýsingarforritum þar sem Duris ® E 2835 tekst aldrei að vekja hrifningu með afköstum sínum á kerfisstigi.
Forrit
- innanhússlýsing
Eiginleikar
- Pakki: Hvítur SMT pakki, litaður dreifður kísill plastefni
- typ. Geislun: 120 gráðu (Lambertian Emitter)
- lit hitastig: 2200k - 6500 k
- CRI: 80 (mín.), 82 (typ.), R9: 0 (mín.)
- ESD: 2 kV Acc. til ANSI/ESDA/JEDEC JS-001 (HBM, flokkur 2)
- Luminous Flux: Typ . 82.5 lm @ 4000 K
- Ljósvirkni: type . 192 lm/w @ 4000 k
- Ljósvirkni @ 65ma: typ . 209 lm/w @ 4000k
| Losunarlitur | Hvítur | CRI | 80 |
| Máttur | 0,44 W (miðja) | Geislahorn | ∢ Dæmigert 120 gráðu |
| Mál | l dæmigert 3,5 mm W dæmigerður 2,8 mm h dæmigerður 0,7 mm |
Birtustig | Dæmigert φv: 72 lm Dæmigert IV: 24,3 geisladiskur Dæmigert φe: 219 MW Dæmigert IE: 73,9 mw/sr |
| Rekstrarhiti | Efsta lágmark -40 gráðu /topp hámark 100 gráðu |
| Vöruflokkur | Lýsing | Pöntunarkóði |
|---|---|---|
| Gw jtlps1.em - jljn - xx310-1-pl | ΦV= 52.0 ... 64.0 lm, MountingMethode: SDCM 3, 2200 K (iF= 150 MA) | Q65113A9171 |
| GW JTLPS1.EM - JMKK - xx310-1 | ΦV= 56.0 ... 68.0 lm, MountingMethode: SDCM 3, 2200 K (iF= 150 MA) | Q65113A9181 |
| GW JTLPS1.EM - JMKM - xx510-1 | ΦV= 56.0 ... 76.0 lm, MountingMethode: SDCM 5, 2200 K (iF= 150 MA) | Q65113A7310 |
| GW JTLPS1.EM - JMKM - xx510-1-PL | ΦV= 52.0 ... 76.0 lm, MountingMethode: SDCM 5, 2200 K (iF= 150 MA) | Q65113A7263 |
| GW JTLPS1.EM - JNKK - xx310-1-g2 | ΦV= 60 ... 68 lm, MountingMethode: SDCM 3, 2200 K (iF= 150 MA) | Q65113A9174 |
| Gw jtlps1.em - jnkl - xx38-1 | ΦV= 60.0 ... 72.0 lm, MountingMethode: SDCM 3, 2700 K (iF= 150 MA) | Q65113A9167 |
| Gw jtlps1.em - jnkn - xx510-1-g2 | ΦV= 60 ... 80 lm, MountingMethode: SDCM 5, 2200 K (iF= 150 MA) | Q65113A7250 |
| Gw jtlps1.em - jnkn - xx58-1 | ΦV= 60.0 ... 80.0 lm, MountingMethode: SDCM 5, 2700 K (iF= 150 MA) | Q65113A7309 |
| GW JTLPS1.EM - KKKM - xx37-1 | ΦV= 64.0 ... 76.0 lm, MountingMethode: SDCM 3, 3000 K (iF= 150 MA) | Q65113A9153 |
| GW JTLPS1.EM - KKKM - xx38-1-PL | ΦV= 64.0 ... 76.0 lm, MountingMethode: SDCM 3, 2700 K (iF= 150 MA) | Q65113A9172 |
| GW JTLPS1.EM - KKLK - xx57-1 | ΦV= 64.0 ... 84.0 lm, MountingMethode: SDCM 5, 3000 K (iF= 150 MA) | Q65113A7311 |
| GW JTLPS1.EM - KKLK - xx58-1-PL | ΦV= 64.0 ... 84.0 lm, MountingMethode: SDCM 5, 2700 K (iF= 150 MA) | Q65113A7238 |
| GW JTLPS1.EM - Klkn - xx31-1 | ΦV= 68.0 ... 80.0 lm, MountingMethode: SDCM 3, 6500 K (iF= 150 MA) | Q65113A9158 |
| Gw jtlps1.em - Klkn - xx32-1 | ΦV= 68.0 ... 80.0 lm, MountingMethode: SDCM 3, 5700 K (iF= 150 MA) | Q65113A9157 |
| GW JTLPS1.EM - Klkn - xx36-1 | ΦV= 68.0 ... 80.0 lm, MountingMethode: SDCM 3, 3500 K (iF= 150 MA) | Q65113A9154 |
| GW JTLPS1.EM - Klkn - xx37-1-PL | ΦV= 68.0 ... 80.0 lm, MountingMethode: SDCM 3, 3000 K (iF= 150 MA) | Q65113A9173 |
| Gw jtlps1.em - Klll - xx51-1 | ΦV= 68.0 ... 88.0 lm, MountingMethode: SDCM 5, 6500 K (iF= 150 MA) | Q65113A2656 |
| Gw jtlps1.em - Klll - xx52-1 | ΦV= 68.0 ... 88.0 lm, MountingMethode: SDCM 5, 5700 K (iF= 150 MA) | Q65113A2655 |
| Gw jtlps1.em - Klll - xx56-1 | ΦV= 68.0 ... 88.0 lm, MountingMethode: SDCM 5, 3500 K (iF= 150 MA) | Q65113A2652 |
| GW JTLPS1.EM - Klll - xx57-1-PL | ΦV= 68.0 ... 88.0 lm, MountingMethode: SDCM 5, 3000 K (iF= 150 MA) | Q65113A7236 |
| Gw jtlps1.em - kmkn - xx37-1-g2 | ΦV= 72 ... 80 lm, MountingMethode: SDCM 3, 3000 K (iF= 150 MA) | Q65113A9163 |
| Gw jtlps1.em - kmkn - xx38-1-g2 | ΦV= 72 ... 80 lm, MountingMethode: SDCM 3, 2700 K (iF= 150 MA) | Q65113A9175 |
| Gw jtlps1.em - kmlk - xx32-1-pl | ΦV= 72.0 ... 84.0 lm, MountingMethode: SDCM 3, 5700 K (iF= 150 MA) | Q65113A9194 |
| Gw jtlps1.em - kmlk - xx33-1 | ΦV= 72.0 ... 84.0 lm, MountingMethode: SDCM 3, 5000 K (iF= 150 MA) | Q65113A9156 |
| Gw jtlps1.em - kmlk - xx35-1 | ΦV= 72.0 ... 84.0 lm, MountingMethode: SDCM 3, 4000 K (iF= 150 MA) | Q65113A9155 |
| GW JTLPS1.EM - kmlk - xx36-1-PL | ΦV= 72.0 ... 84.0 lm, MountingMethode: SDCM 3, 3500 K (iF= 150 MA) | Q65113A9190 |
| Gw jtlps1.em - kmll - xx55-1 | ΦV= 72.0 ... 88.0 lm, MountingMethode: SDCM 5, 4000 K (iF= 150 MA) | Q65113A4403 |
| GW JTLPS1.EM - kmlm - xx51-1-PL | ΦV= 72.0 ... 92.0 lm, MountingMethode: SDCM 5, 6500 K (iF= 150 MA) | Q65113A7235 |
| Gw jtlps1.em - kmlm - xx52-1-pL | ΦV= 72.0 ... 92.0 lm, MountingMethode: SDCM 5, 5700 K (iF= 150 MA) | Q65113A7239 |
| Gw jtlps1.em - kmlm - xx53-1 | ΦV= 72.0 ... 92.0 lm, MountingMethode: SDCM 5, 5000 K (iF= 150 MA) | Q65113A7320 |
| Gw jtlps1.em - kmlm - xx53-1-pl | ΦV= 72.0 ... 92.0 lm, MountingMethode: SDCM 5, 5000 K (iF= 150 MA) | Q65113A7240 |
| GW JTLPS1.EM - kmlm - xx55-1-PL | ΦV= 76.0 ... 96.0 lm, MountingMethode: SDCM 5, 4000 K (iF= 150 MA) | Q65113A7241 |
| Gw jtlps1.em - kmlm - xx56-1-pl | ΦV= 68.0 ... 92.0 lm, MountingMethode: SDCM 5, 3500 K (iF= 150 MA) | Q65113A7237 |
| Gw jtlps1.em - kmlm - xx57-1-g2 | ΦV= 72 ... 92 lm, MountingMethode: SDCM 5, 3000 K (iF= 150 MA) | Q65113A7253 |
| Gw jtlps1.em - kmlm - xx58-1-g2 | ΦV= 68 ... 92 lm, MountingMethode: SDCM 5, 2700 K (iF= 150 MA) | Q65113A7251 |
| GW JTLPS1.EM - KNLK - xx36-1-g2 | ΦV= 76 ... 84 lm, MountingMethode: SDCM 3, 3500 K (iF= 150 MA) | Q65113A9166 |
| GW JTLPS1.EM - Knll - xx31-1-PL | ΦV= 76.0 ... 88.0 lm, MountingMethode: SDCM 3, 6500 K (iF= 150 MA) | Q65113A9191 |
| GW JTLPS1.EM - Knll - xx33-1-PL | ΦV= 76.0 ... 88.0 lm, MountingMethode: SDCM 3, 5000 K (iF= 150 MA) | Q65113A9195 |
| GW JTLPS1.EM - Knll - xx35-1-PL | ΦV= 76.0 ... 88.0 lm, MountingMethode: SDCM 3, 4000 K (iF= 150 MA) | Q65113A9189 |
| GW JTLPS1.EM - KNLM - xx56-1-g2 | ΦV= 72 ... 92 lm, MountingMethode: SDCM 5, 3500 K (iF= 150 MA) | Q65113A7252 |
| Gw jtlps1.em - lkll - xx31-1-g2 | ΦV= 80 ... 88 lm, MountingMethode: SDCM 3, 6500 K (iF= 150 MA) | Q65113A9170 |
| Gw jtlps1.em - lkll - xx32-1-g2 | ΦV= 80 ... 88 lm, MountingMethode: SDCM 3, 5700 K (iF= 150 MA) | Q65113A9165 |
| Gw jtlps1.em - lkll - xx33-1-g2 | ΦV= 80 ... 88 lm, MountingMethode: SDCM 3, 5000 K (iF= 150 MA) | Q65113A9161 |
| Gw jtlps1.em - lkll - xx35-1-g2 | ΦV= 80 ... 88 lm, MountingMethode: SDCM 3, 4000 K (iF= 150 MA) | Q65113A9162 |
| Gw jtlps1.em - lKLn - xx51-1-g2 | ΦV= 76 ... 96 lm, MountingMethode: SDCM 5, 6500 K (iF= 150 MA) | Q65113A7254 |
| Gw jtlps1.em - lKLn - xx52-1-g2 | ΦV= 80 ... 96 lm, MountingMethode: SDCM 5, 5700 K (iF= 150 MA) | Q65112A9122 |
| Gw jtlps1.em - lKLn - xx53-1-g2 | ΦV= 80 ... 96 lm, MountingMethode: SDCM 5, 5000 K (iF= 150 MA) | Q65112A9123 |
| Gw jtlps1.em - lkmk - xx55-1-g2 | ΦV= 80 ... 100 lm, MountingMethode: SDCM 5, 4000 K (iF= 150 MA) | Q65113A7950 |
